Rubber Seal Ring

Home Products Rubber Part Rubber Seal Ring Rubber D-Ring Seal

Rubber D-Ring Seal

Product Item : OVRS-14
Category： Rubber Seal Ring
Supply: In Stock
Material: NBR, CR, IIR, SBR, NR, VMQ, HYPLONM, AU, FKM, PTFEM FFKM, ACM
Color: Black, Brown, Red or assigned color.
OEM: Available
INQUIRY EMAIL

Product Description:

Description

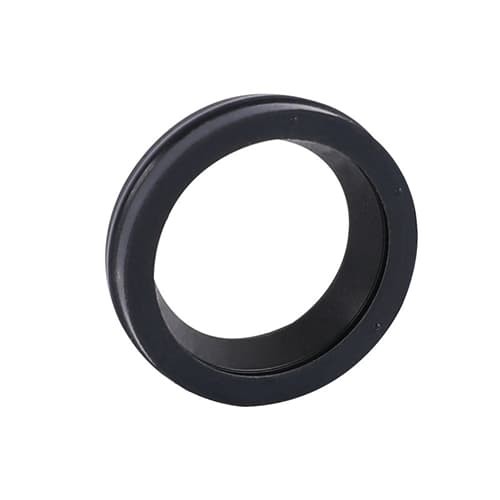

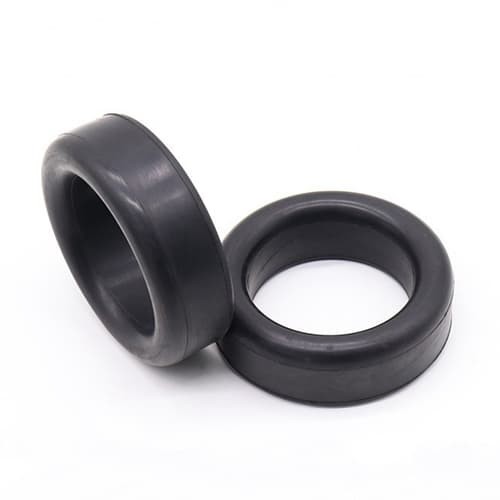

D-Ring is a seal with a D-shaped cross-section, which is essentially an O-ring with a square base. It provides a large base contact area and the flat bottom ensures better stability in the groove, thus eliminating the possibility of twisting and spiral failure. The friction force is equivalent to that of O-ring, but the deformation of the cross-section is large under high pressure, so a retaining ring must be used to adapt to high pressure. D-Ring can provide good sealing effect in reciprocating motion, such as piston rod sealing for hydraulic and pneumatic. The D-Ring is not easy to be twisted and damaged during use, and when it works at low temperature, its contact pressure is larger than that of the O-ring, and it is not easy to be bitten. It is a rubber sealing ring with good self-sealing performance.

Advantages

Stable sealing solution with high resistance to rolling in dynamic applications.

High resistance to spiral failure.

D-rings fit in existing O-ring grooves.

Technical Specifications

Movement type: Static, Light dynamic rotating/reciprocating

Available sizes: Any size available upon request.

Temperature range: NBR: -40° to +108° C; EPDM: -55° to +155° C; FKM: -25° to +204° C.

Hardness range: Static: 70 +/-5 Shore; Rotating: 90 Shore.

Available materials: NBR, EPDM, FKM, CR, FVMQ, HNBR, FFKM, PU, VMQ.

Available compliances: KTW, USP, NSF 51 61, WRC, WRAS, FDA, R67 01

Available standards: DIN11851.

DIN 11851 Standard Sizes

DN size	Internal Diameter(ID)	Outer Diameter(OD)	Height	Radius
DN10	12 mm	20 mm	4.5 mm	2.3 mm
DN15	18 mm	26 mm	4.5 mm	2.3 mm
DN20	23 mm	33 mm	4.5 mm	2.8 mm
DN25	30 mm	40 mm	5 mm	2.8 mm
DN32	36 mm	46 mm	5 mm	2.8 mm
DN40	42 mm	52 mm	5 mm	2.8 mm
DN50	54 mm	64 mm	5 mm	2.8 mm
DN65	71 mm	81 mm	5 mm	2.8 mm
DN80	85 mm	95 mm	5 mm	2.8 mm
DN100	104 mm	114 mm	6 mm	2.8 mm
DN125	130 mm	142 mm	7 mm	3.5 mm
DN150	155 mm	167 mm	7 mm	3.5 mm
