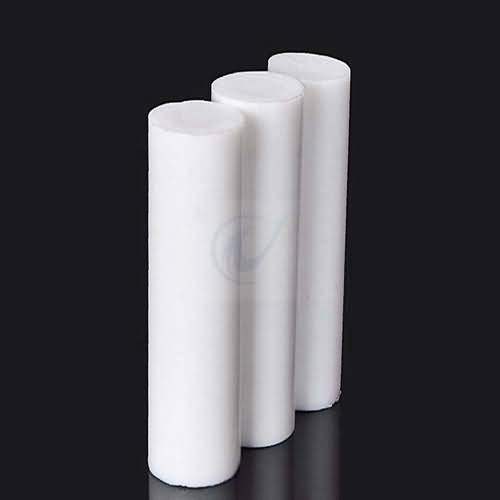

PTFE Rod

Product Item : OVP-004
Category： Industrial Plastic Products
Material: 100% virgin PTFE
Working temperature: up to 250°C
Colour: White
Size: 2-200mm
INQUIRY EMAIL

Product Description:

PTFE is a special plastic which has excellent non-stick properties, that means most of substance can not adhere on its surface. PTFE is not affected by almost all chemicals and solvents and has outstanding dielectric properties, making PTFE rods the ideal engineering plastic for electrical and thermal insulators,seals,glide ringds,etc. PTFE also has excellent UV resistance and is capable of continuous use at -80- 260 Deg.C.

PTFE rod is made from high performance 100% Virgin PTFE material which make sure its excellent thermal, chemical, and electrical resistant properties. In some unimportant application scenarios, reprocessed PTFE can be used to reduce cost.

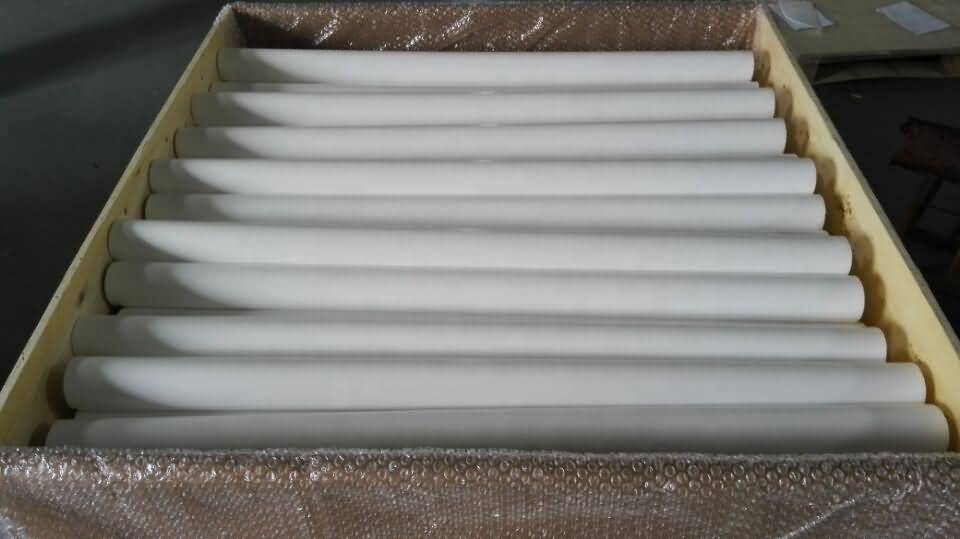

Ovictor group supply all sizes of PTFE extruded rod and PTFE molded rod as follows:

Size And Dimensions

OD(mm)	Min Length(mm)	Max Length(mm)	Type
1, 2, 3, 4	continuous length		Extruded Rod
5, 6, 8, 10, 12, 15, 16, 18, 20, 22, 25, 28, 30, 32, 35, 40	100	2000	Extruded Rod
45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100	100	2000	Extruded Rod
110, 120, 130, 140, 150, 160, 170, 180, 190, 200	100	2000	Extruded Rod
210, 220, 230, 240, 250, 260, 270, 280, 300	10	300	Molded Rod
310, 320, 330, 340, 350, 360, 370, 380, 390, 400, 410, 420, 440, 450, 460, 470, 480, 490, 500	10	100	Molded Rod

Physical Data

Processing Service	Moulding, Cutting
Material	100% Virgin PTFEMaterial
Relative Density	2.14-2.3g/cm³
Tensile Strength	>25Mpa
Bend Strength	11Mpa
Elongation	>300%
Working Temperature	-80 to 260Deg.C
Hardness	59-63 Shore A
Melt point	327Deg.C
Size	Diameter 2-200mm
