Asbestos Packing with Graphite

Product Description:

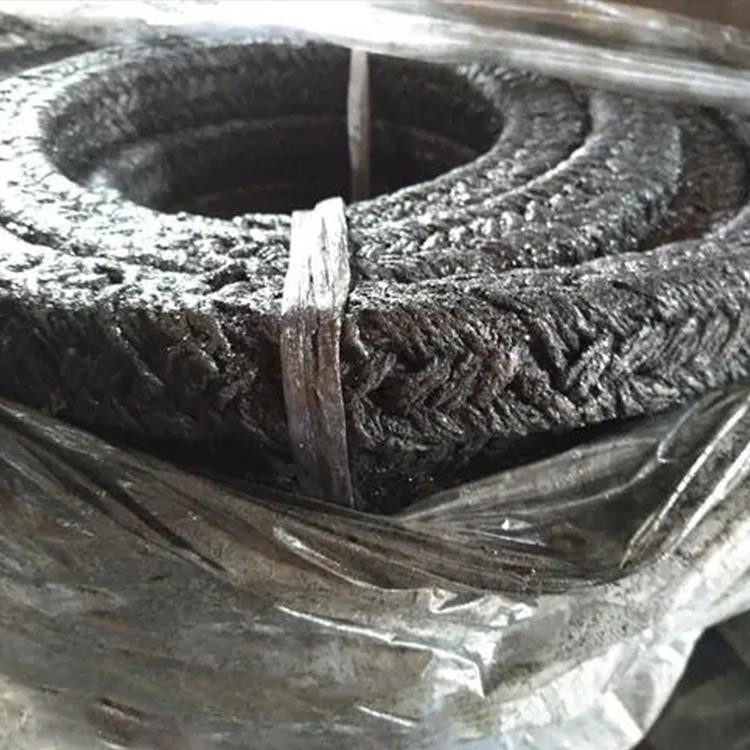

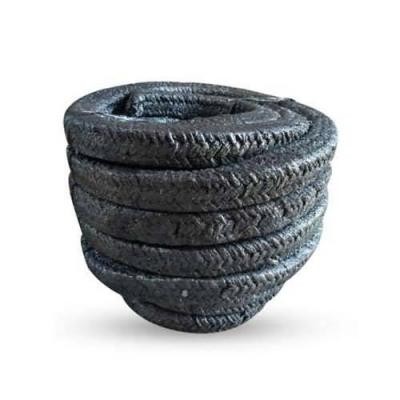

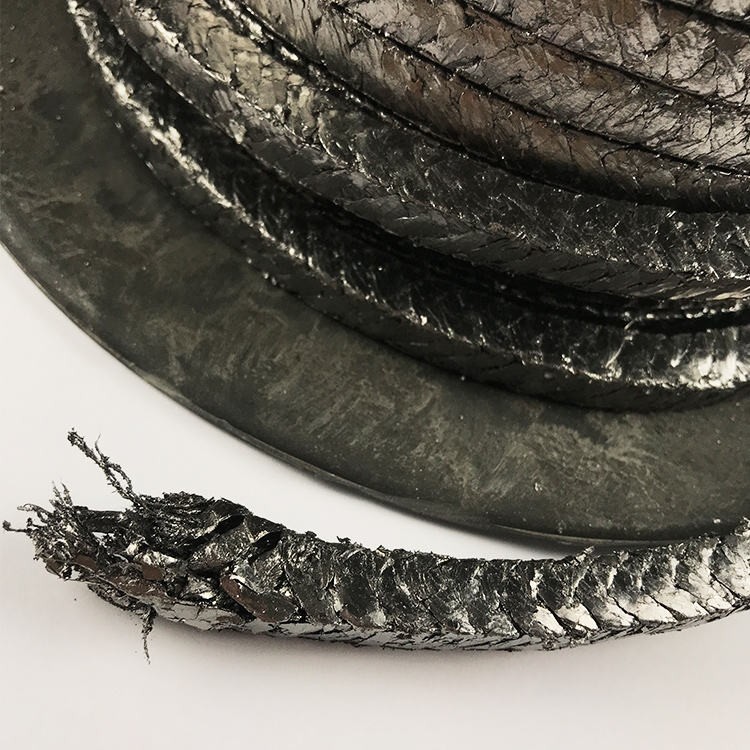

Asbestos packing with graphite

Asbestos packing with graphite impregnation is a braided packing made of asbestos yarns and then thoroughly impregnated with dry graphite,and externally coated with pure graphite.It is suitable for specific employment in the presence of high temperatures and high pressures.

Application:

For use in valves, tap equipment,for alternative and rotary shafts, and Can be safely used in oils,superheated steam, solvents, hydrocarbons, gas,ammonia, abrasive liquids. widely used in general industries such as petroleum, chemical industry, mechanical equipment, shipbuilding, etc.


Item

Rotating

Reciprocating

Static

Pressure

Mpa

3

10

30

Shaft speed M/s

0-8

Density g/cm3

1.65

Temperature ℃

450

PH range

0-14

Size

6mmx6mm-50mmx50mm

Color

black

packing

5kgs or 10kgs per roll
