Sliding Bridge Bearing Pad With PTFE

  • Product Item : OVTB-11006
  • Category: Bridge Bearing Pad
  • Material:Natural rubber and Neoprene rubber and PTFE
  • Shape:Rectangular, Round
  • Hardness:65 Shore
  • Business type:Manufacturer
  • INQUIRY   EMAIL
Product Description:

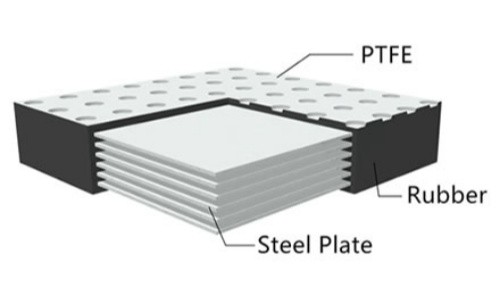

Elastomer rubber bearing pad is common and popular components for bridge shock-absorption devices. It is made of natural or neoprene rubber layers and reinforced steel plates, by high temperature and pressure vulcanization.

Features of bearing pad:
Quality materials including natural rubber, neoprene complying with AASHTO standards.
Allow for expansions and contractions of precast steel structure of bridges.
Capable to control load distribution, meanwhile accommodate thermal and end-beam rotational movements.
Vibration, sounds and shocks isolation.
Avoid excessive load eccentricity and edge compression.
Simple but robust structure.

Lower price than laminated elastomeric bearing.
High cost effectiveness.

Minimal maintenance is needed.

Elastomer rubber bearing pad technical parameter

Technical index

Neoprene Rubber

Natural Rubber

Hardness (IRHD)

60±5

60±5

Strength Tensile (Mpa)

≥17

≥18

Elongation at break (%)

≥400

≥450

Brittleness temperature (℃)

≤40

≤-50

Constant compression permanent deformation

≤15

≤30

Resistance to ozone aging test
(test conditions,20% elongation,40℃×96h)

100ppmm

25ppmm

No cracking

No cracking

Hot air aging test
(The biggest change comparing with before aging numerical)

Test conditions (℃×h)

100×70

70×168

Strength Tensile (%)

-15

-15

Elongation at break(%)

-40

-20

Variation in hardness(IRHD)

0,+10

-5,+10

Strength of rubber and steel Peel adhesive (KN/m)

>10

>10

Strength of four fluorine plate and rubber (KN/m)

>7

>7
