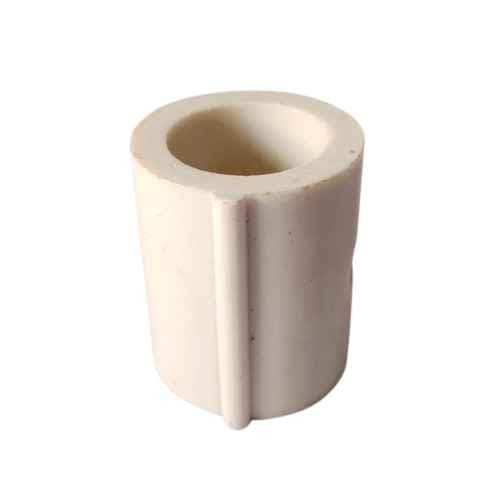

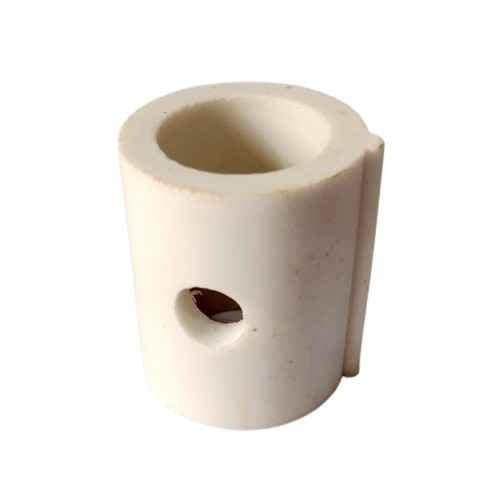

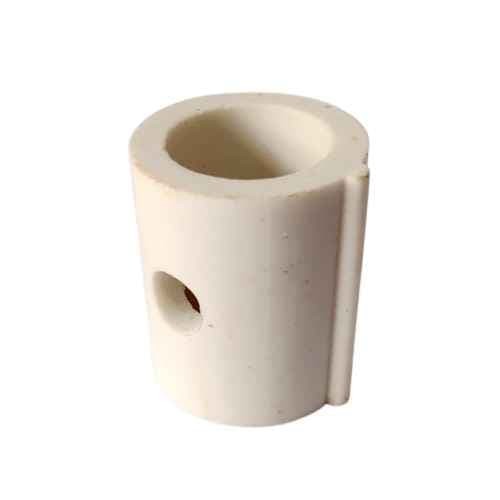

PTFE Packing Sleeve

Product Item : OVP-005
Category： Industrial Plastic Products
Supply: In Stock
Material: PTFE
Usage: Sealing for gauge cocks
OEM: Available
INQUIRY EMAIL

Product Description:

Description：

PTFE graphite packing sleeves are made from modified PTFE, they usually do not need steel eyelets. Fitting around to spindle to ensure its smooth action and prevent leakage. The effective sealing properties of PTFE, combined with the ease with which it can be removed and replaced ensure PTFE is the material of choice. So many brands of AB cocks used PTFE Packing sleeves.

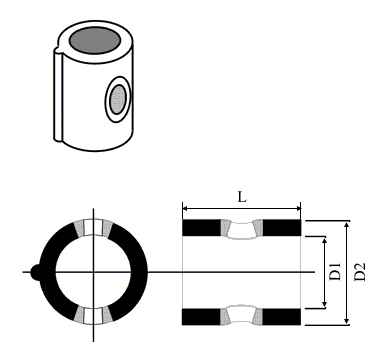

A popular application of PTFE sleeve is to seal the drain cocks for level gauges (see. fig. below). The size of the sleeve must be exactly matched to the size of the valve (cock). The specifications and standards are as follows.

Size	Inner Dia(D1)	Outer Dia(D2)	Length(L)
AB10	10mm	14mm	18.5mm
AB12	12mm	18mm	23mm
AB18	18mm	26mm	32mm
AB22	22mm	33mm	37mm
AB28	28mm	38mm	44mm
AB32	32mm	45mm	52mm
AB42	42mm	52mm	56mm
AB50	50mm	62mm	65mm
